200°C (392°F)

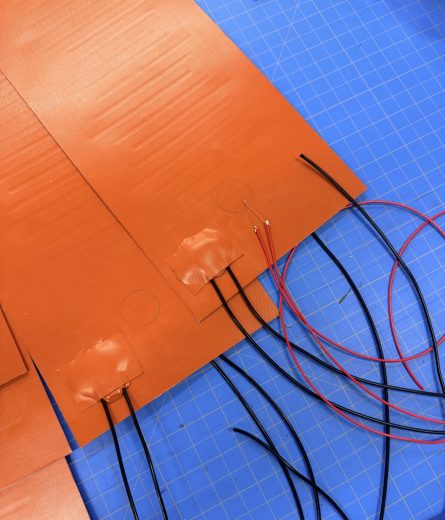

Silicone Rubber Pad Heaters
Flexible. Precise. Built for Real-World Demands.
When you need to apply heat exactly where it’s required — on flat surfaces, curves, cylinders, or complex geometries — Caliente Silicone Rubber Pad Heaters deliver unmatched versatility. Thin, lightweight, and extremely flexible, these heaters conform to your equipment while providing uniform, reliable heat distribution up to 200°C (392°F) continuous operation.
Why Choose Caliente Silicone Pad Heaters?
Silicone rubber heaters are ideal wherever traditional rigid heaters cannot fit or perform effectively. Their thin profile (standard ~0.056″) and excellent thermal transfer make them perfect for direct surface heating applications.
Two Element Technologies – Choose What Fits Your Needs
Etched Foil Silicone Rubber Heaters
Using custom software, our designers create precision nickel alloy foil patterns that are acid-etched and vulcanized between silicone layers.
Key Advantages:
- Superior heat transfer and exceptionally uniform temperature distribution
- Faster warm-up times
- Longer service life
- Distributed wattage with complex heat patterns possible
- Can be designed to compensate for edge loss
- Accurate reproduction of intricate circuits
- Greater heating element area coverage
Wire Wound Silicone Rubber Heaters
A fine nickel-chromium alloy wire is precision-wound on fiberglass core, then hand-laid onto tooling and vulcanized between silicone layers.
Key Advantages:
- Extremely robust and durable construction
- Parallel circuit options for continued operation even if one path is damaged
- Excellent for high-reliability and high-vibration environments
- Often more cost effective vs etched foil designs
- Molded-to-shape designs for unique geometries
- Pressure Sensitive Adhesive (PSA) backing for easy installation
- Factory bonding / vulcanized attachment
- Thermostats (surface or air sensing)
- Thermocouples and NTC thermistors for precise monitoring
- Custom lead wires, cords, plugs, and connectors (Teflon or silicone)
- Multiple voltage options (low voltage to 1000V)
- Integrated temperature controls and sensors
- Custom shapes, cutouts, and dimensions
- Enclosure heating & freeze protection
- Traffic signal boxes & outdoor electronics
- Battery heating (including EV battery heaters)
- Medical & veterinary equipment
- Lab equipment & lyophilizers (freeze dryers)
- Food service equipment & warming trays
- Military & aerospace (satellites, thermal targets)
- Composite repair & curing
- Sonic cleaning equipment
- Display cases
- Food processing equipment
Specifications (Standard Ranges)
| Parameter | Specification |
|---|---|
| Voltage | 12V – 1000V (AC or DC) |
| Wattage Tolerance | ±5% / -10% on UL recognized designs |
| Thickness | 0.056" standard |
| Dimensions | Up to 120" length × 36" width |
| Operating Temp | -70°F to 450°F (-57°C to 232°C) |
| Max Intermittent | 600°F (316°C) |
Custom designs are our specialty.
Designed to your exact requirements – the size, shape, wattage, and voltage your application requires.
Ready to solve your heating challenge?
Provide us with your application details (dimensions, target temperature, voltage, environment, what it will be bonded to etc.), and our engineers will deliver a fast, competitive proposal tailored to your needs.
